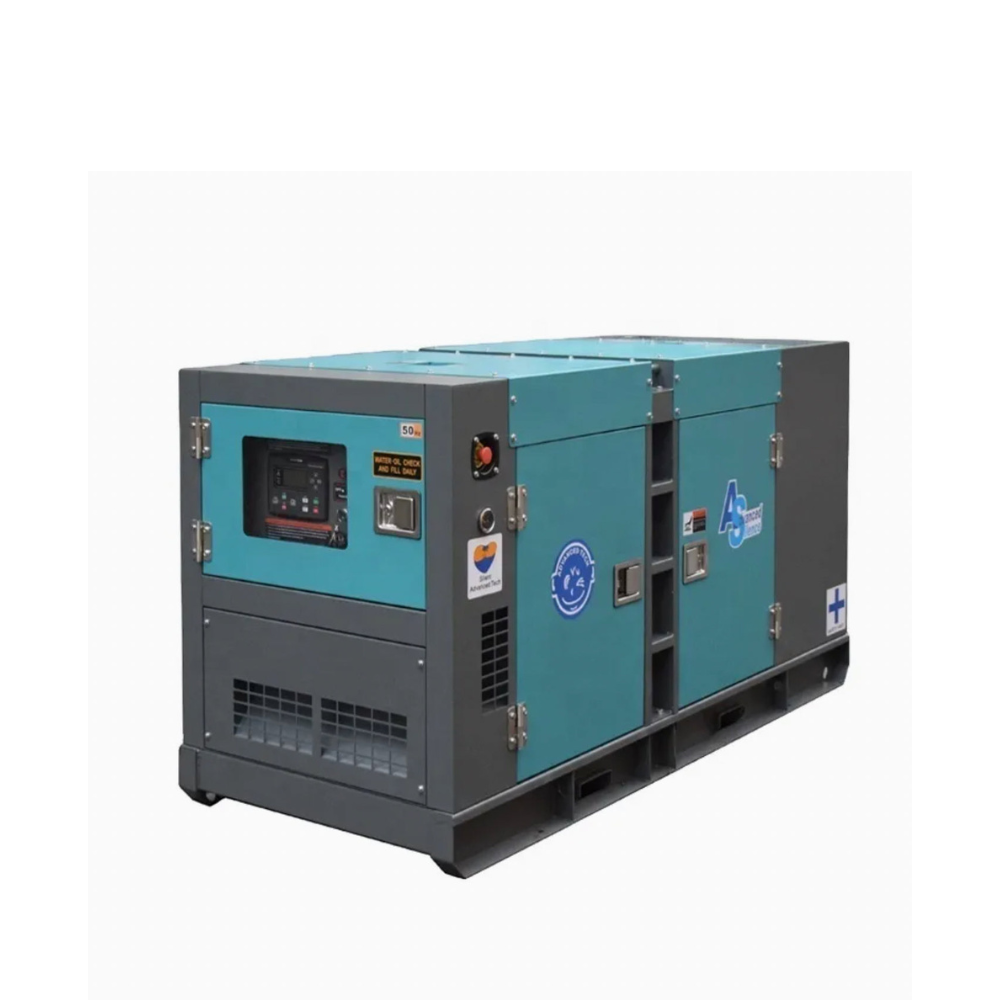

UNIV Model 30ESX Diesel Generator
Dhs. 25,999.00 AED
Available to order
Applicable taxes calculated at checkout.
Delivery and taxes are calculated at checkout. Heavy loads and special unloading may require a separate quotation.
Product description
| Product Attribute | Specification / Detail |
|---|---|
| Product Name | UNIV Model 30ESX Diesel Generator |
| Brand | UNIV |
| Model Number | 30ESX |
| Emergency / Standby Power (ESP) | 28 kW / 35 kVA |
| Prime Power Rating (PRP) | 25 kW / 30 kVA |
| Voltage Range | 190V – 440V |
| Frequency | 50 Hz |
| Engine Make & Model | ISUZU – 4JB1T |
| Engine Type | 4-cylinder, vertical in-line, 4-stroke, turbocharged |
| Displacement | 2.771 L |
| Bore × Stroke | 93 mm × 102 mm |
| Fuel Consumption (Standby / Prime / Partial) | 6.1 L/h (110% Load), 5.5 L/h (100% Prime Load), 4.1 L/h (75% Prime Load) |
| Injection / Governor | Indirect injection / Mechanical governor |
| Alternator Options | Leroy Somer (LSA42.2L9) or Stamford (PI144E) |
| Voltage Regulation | ±0.5% (Leroy Somer) / ±1.0% (Stamford) |
| Winding / Insulation Class | 2/3 Pitch / Class H |
| Control Module | Smartgen HGM1780 microprocessor controller |
| Starting System | 12V electric starter |
| Physical – Open Set Dimensions (L×W×H) | 1650 mm × 750 mm × 800 mm |
| Physical – Soundproof Set Dimensions (L×W×H) | 2000 mm × 850 mm × 1060 mm |
| Weight – Open / Soundproof | 600 kg / 820 kg |
| Application | Industrial / Backup Power / Construction / Facility Use |
| Stock & Availability | In stock – limited units available |
