Grand Decho EG10000es 8kW Petrol Generator – Single & Three Phase
Available to order
Applicable taxes calculated at checkout.
Delivery and taxes are calculated at checkout. Heavy loads and special unloading may require a separate quotation.
Product description

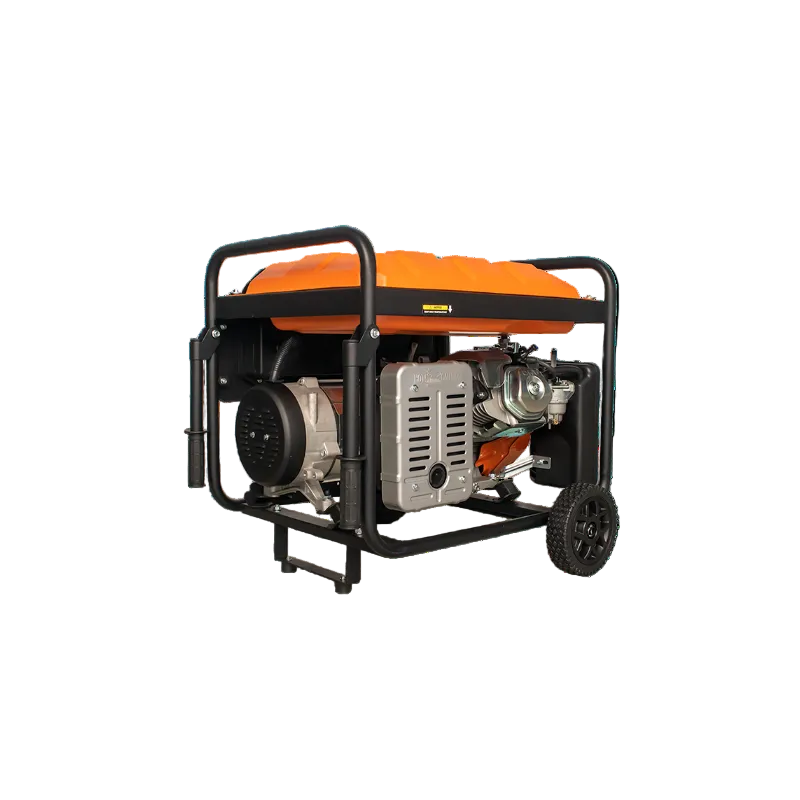

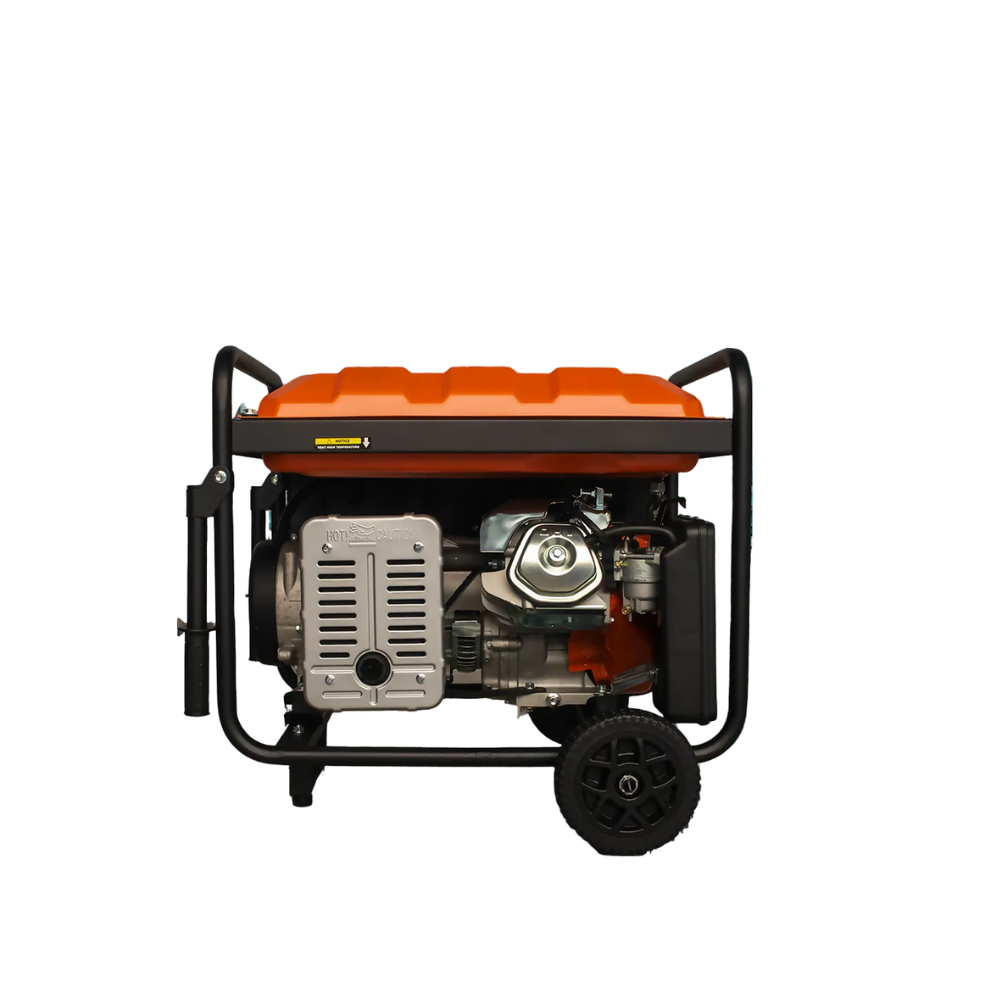

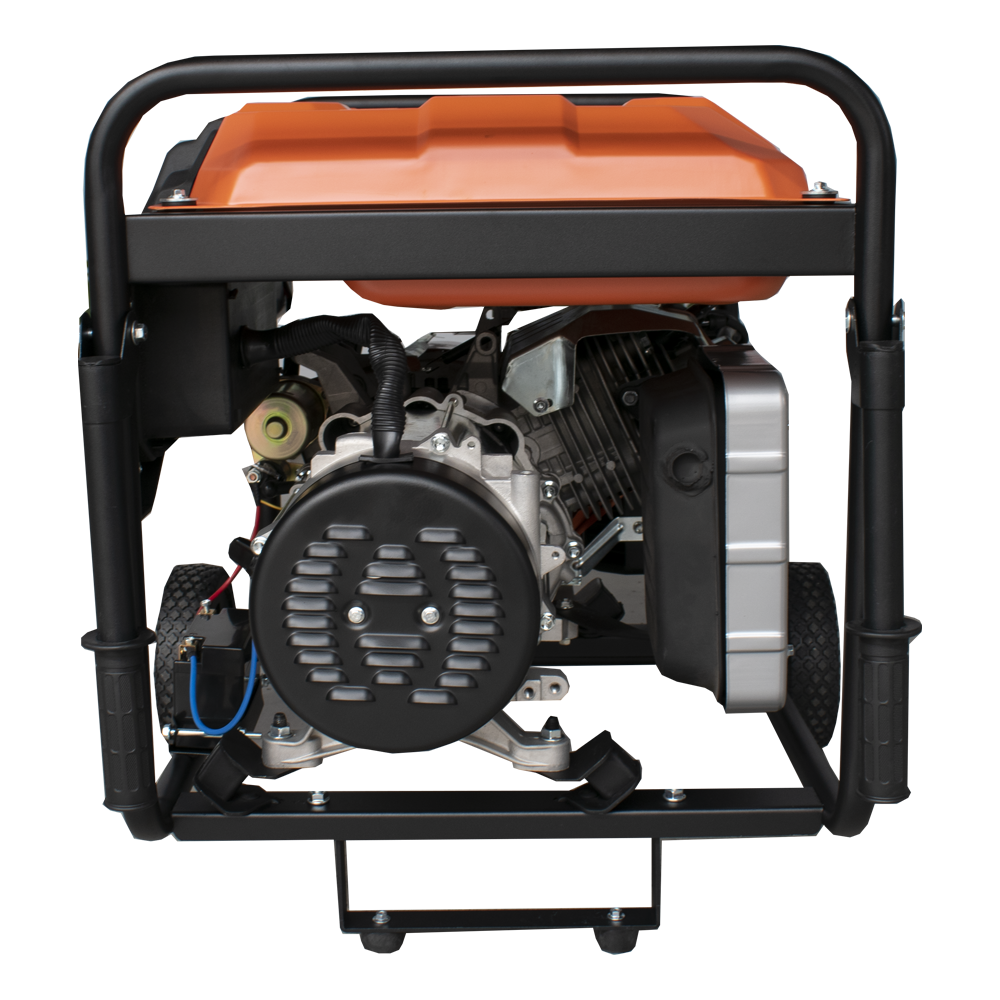

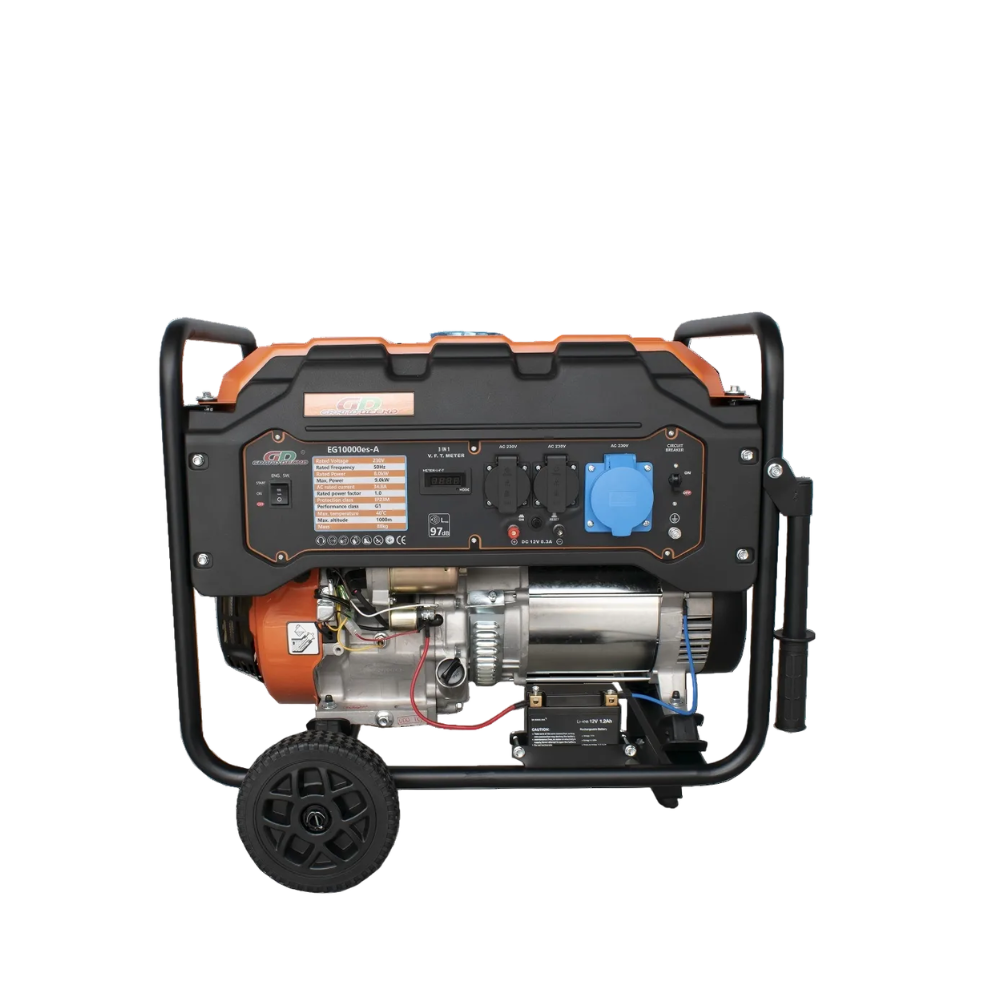

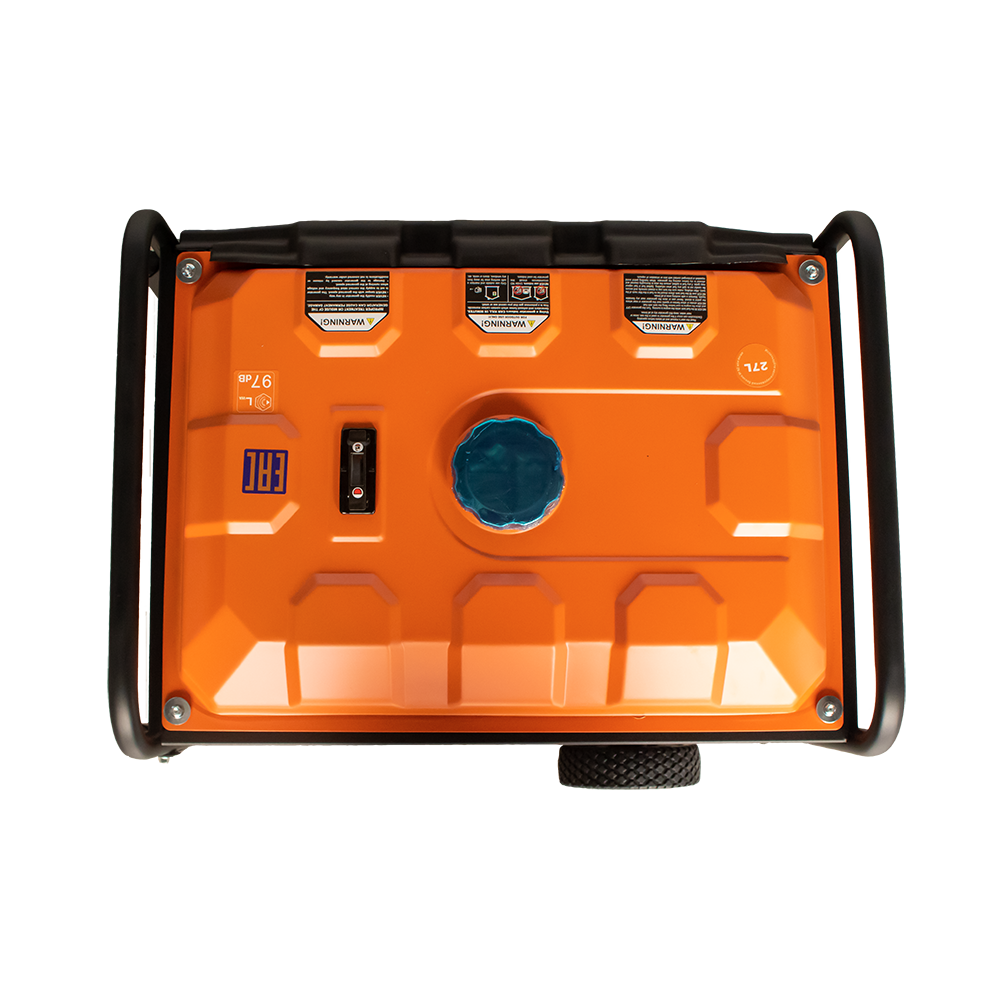

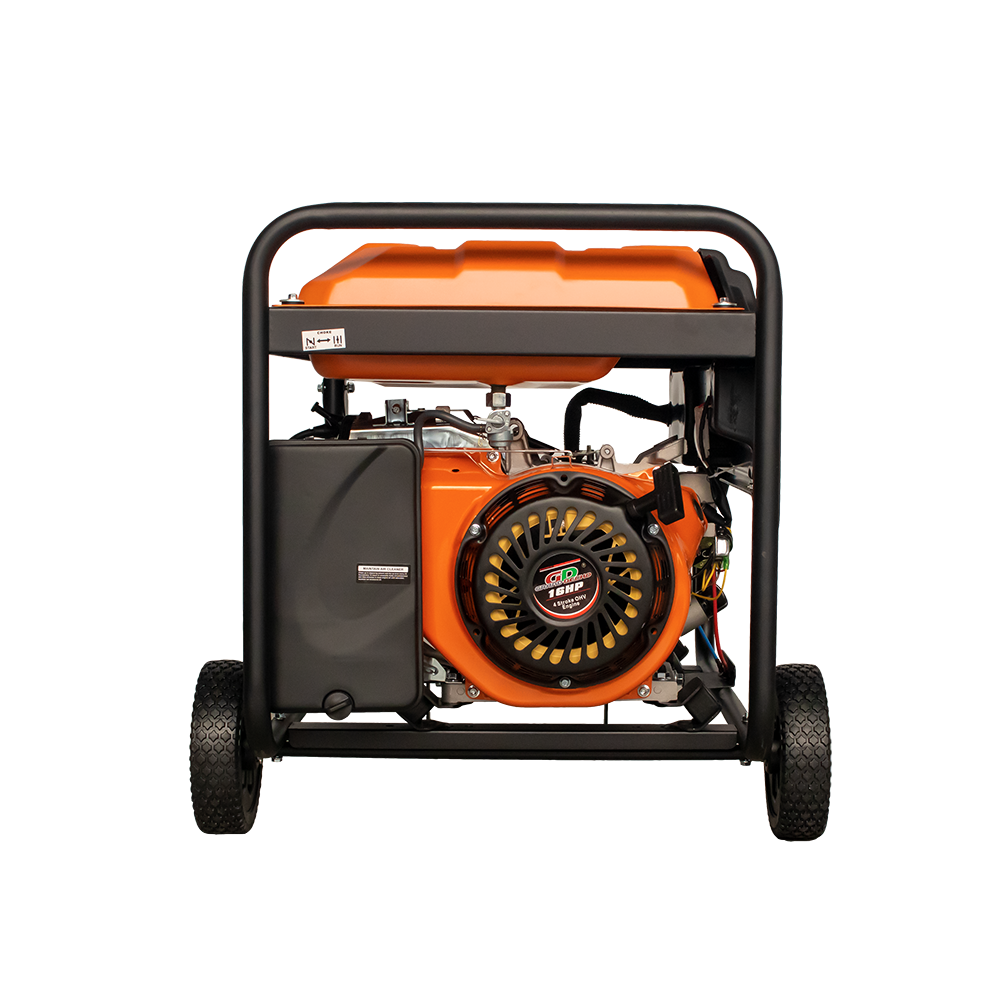

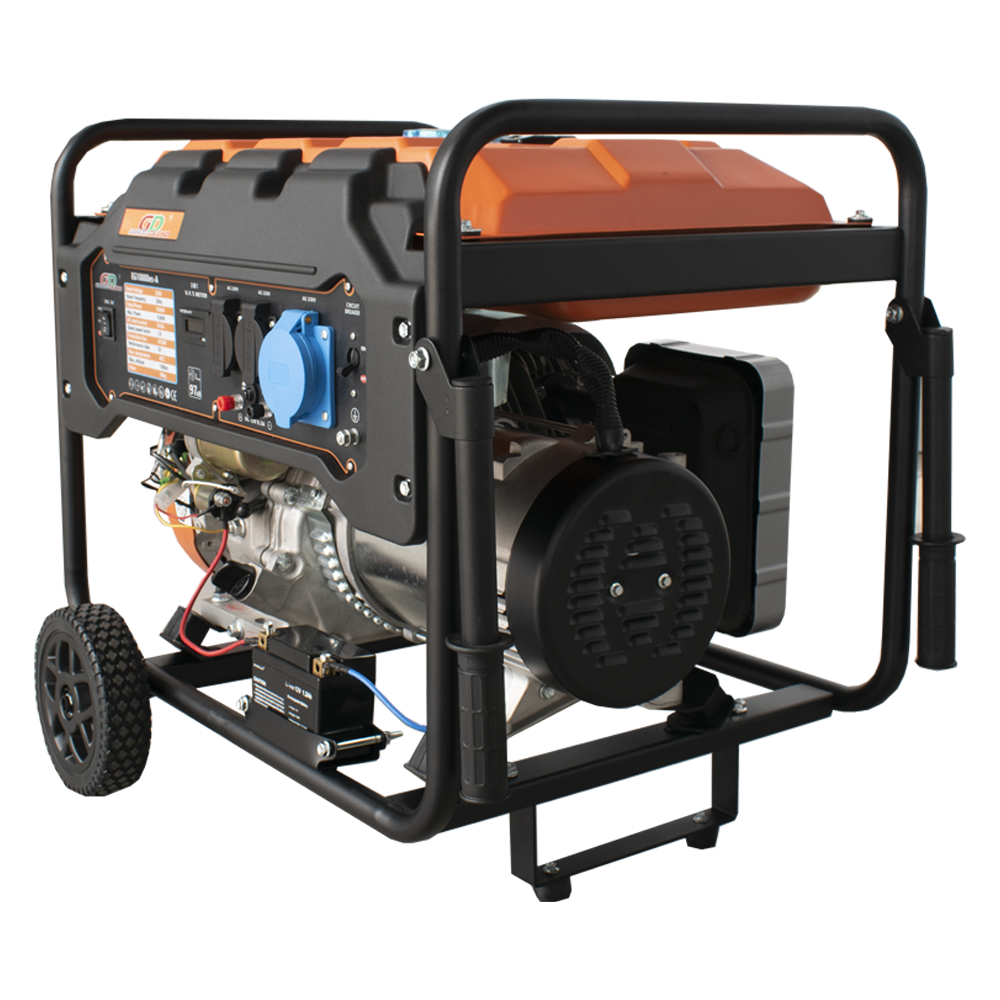

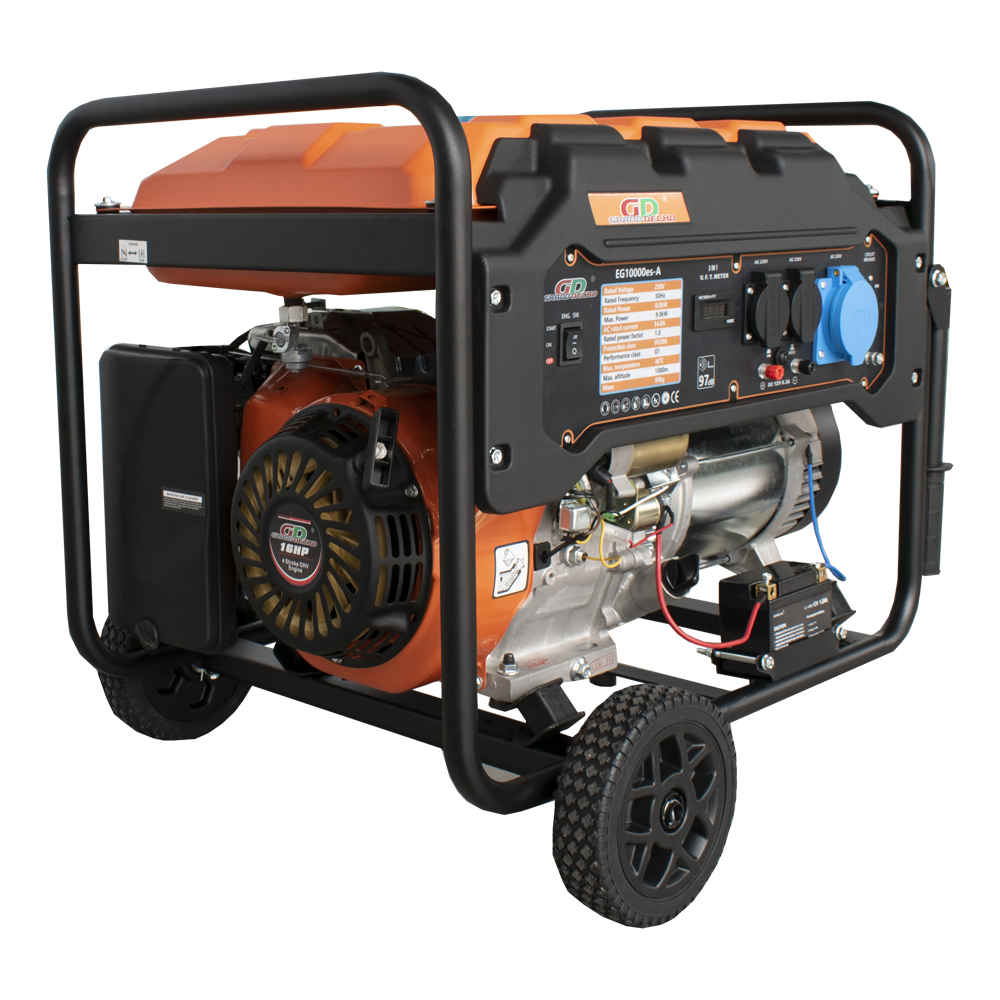

GRAND DECHO EG10000es – 8kW PETROL GENERATOR
Reliable 8kW rated power with 9kW maximum output, designed for residential, commercial and industrial backup applications. Available in single-phase and three-phase configurations, with optional ATS port for automatic transfer switch connectivity.
Technical Specifications – Variant Comparison
| Specifications | Single Phase | Single Phase + ATS | Three Phase | Three Phase + ATS |
|---|---|---|---|---|
| Model | EG10000es-A | EG10000es-A-A | EG10000es-T-A | EG10000es-T-A-A |
| Rated Output | 8 kW | 8 kW | 8 kW | 8 kW |
| Maximum Output | 9 kW | 9 kW | 9 kW | 9 kW |
| Phase | Single | Single | Three | Three |
| Voltage | To be confirmed | To be confirmed | 230V / 400V | 230V / 400V |
| Frequency | To be confirmed | To be confirmed | 50 Hz | 50 Hz |
| Alternator | Copper Wire | Copper Wire | Copper Wire | Copper Wire |
| ATS Port | No | Yes | No | Yes |
| AC Sockets | To be confirmed | To be confirmed | 230V: 2×16A + 1×32A; 400V: 1×16A | Same as Three Phase |
Additional Three-Phase Specifications
-
Generator Type: Synchronous
-
DC Output: 12V / 8.3A
-
Protection Rating: IP23M
-
Insulation Class: F
Key Features
-
8kW rated output and 9kW maximum output
-
Copper-wire alternator
-
Choice of single-phase or three-phase configuration
-
Optional ATS port for automatic transfer switch connection
-
Suitable for residential, commercial and site applications
Suitable Applications
Homes, villas, shops, commercial premises, construction sites, farms and outdoor events.
Note: ATS port provides connectivity for an external Automatic Transfer Switch (ATS). An ATS unit is not necessarily included. Please confirm configuration and compatibility before ordering.
