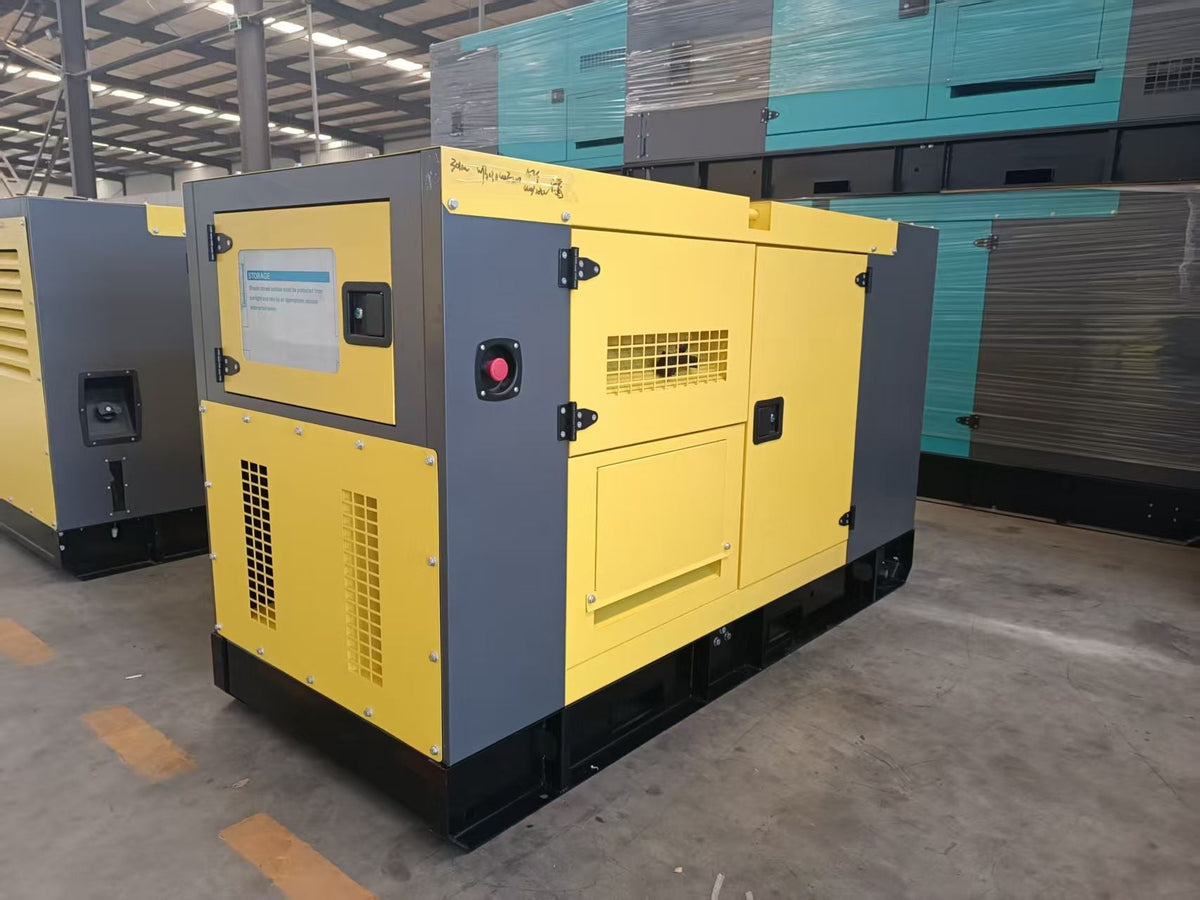

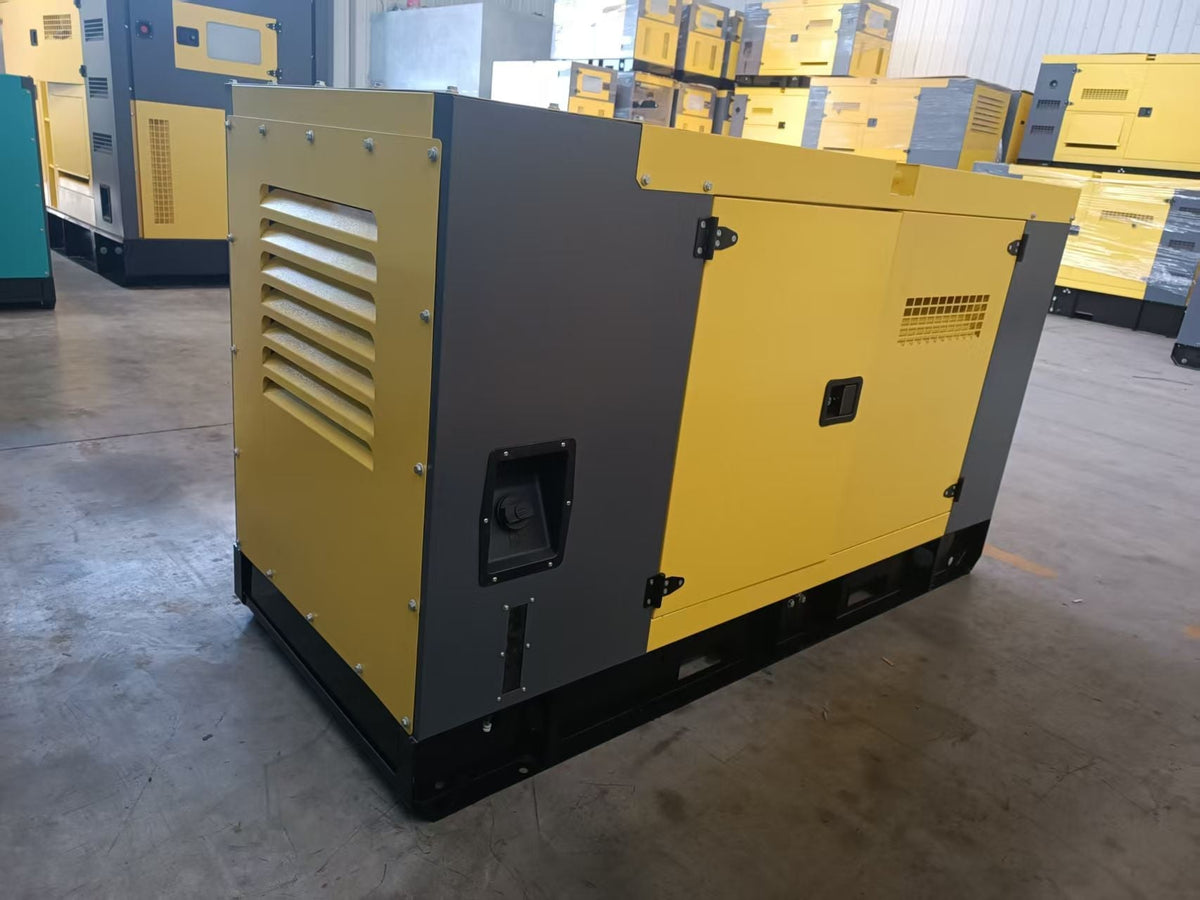

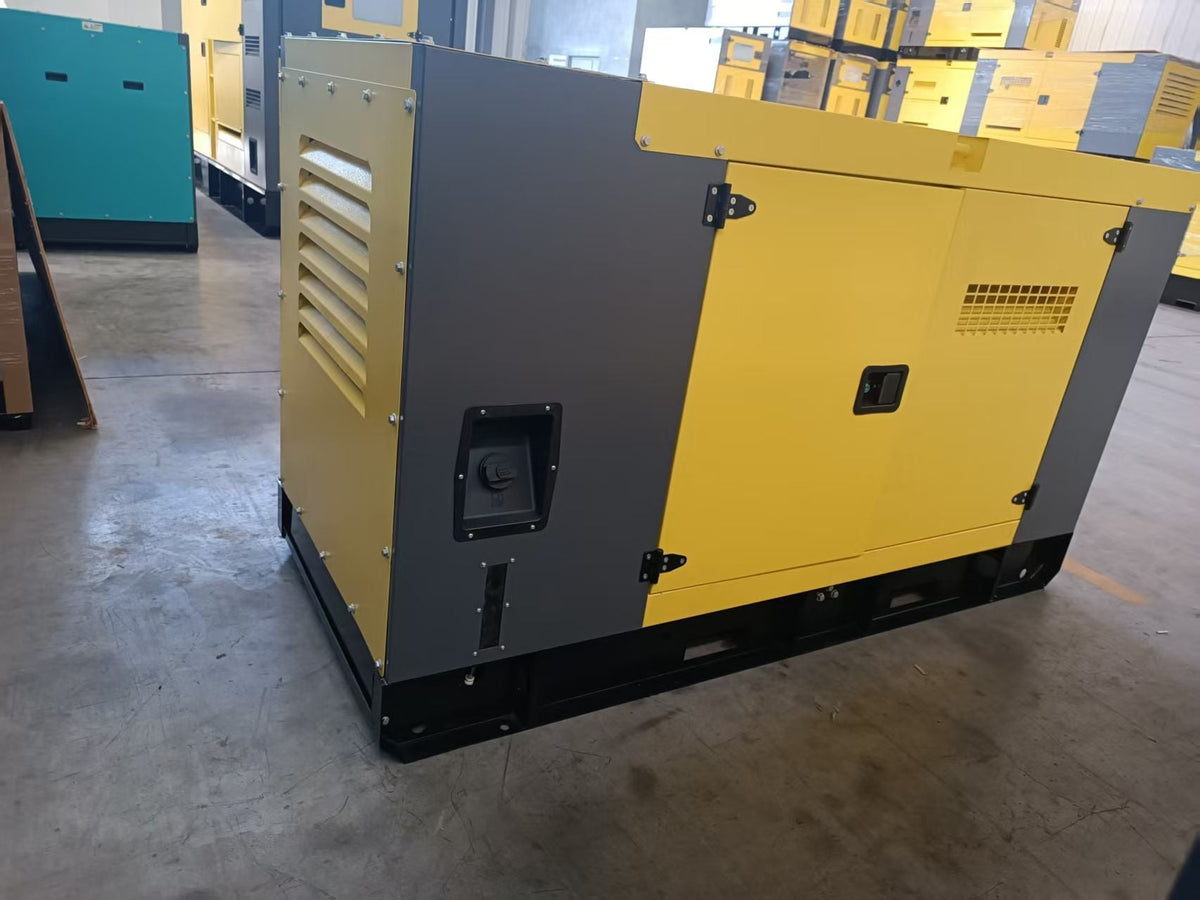

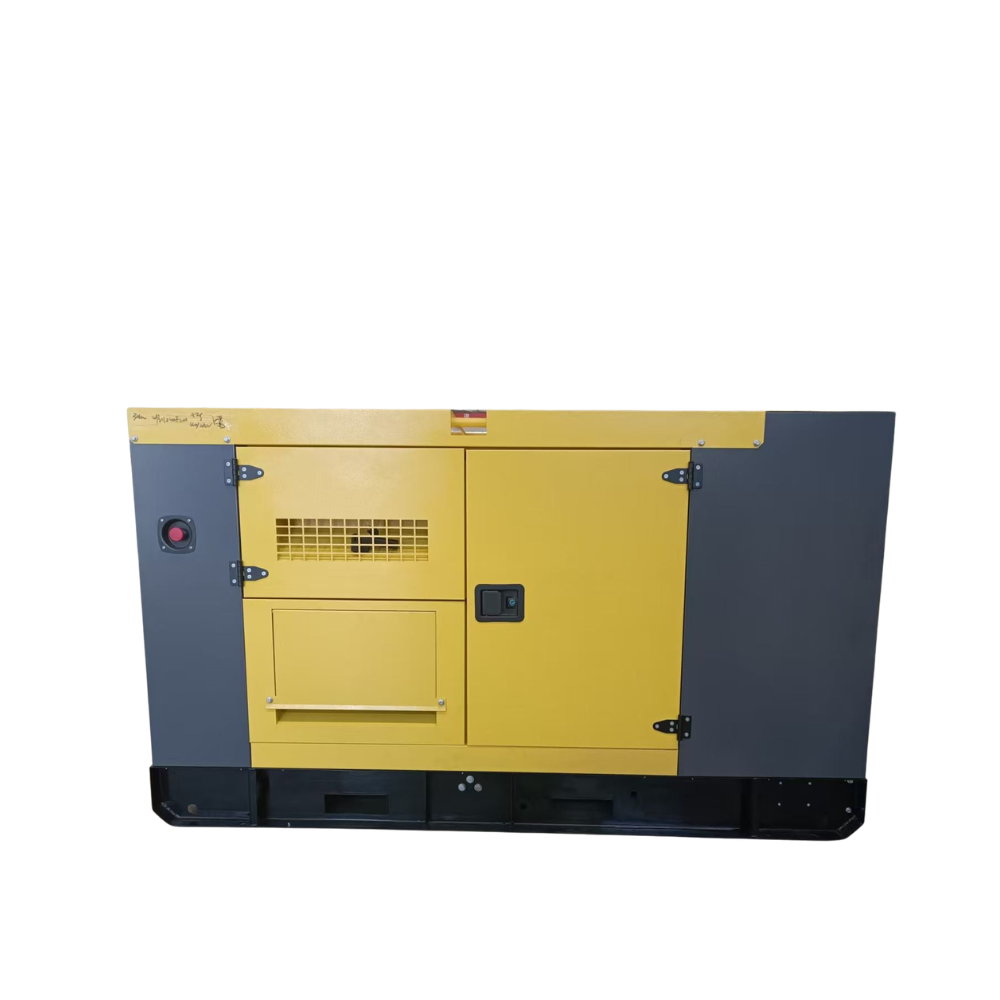

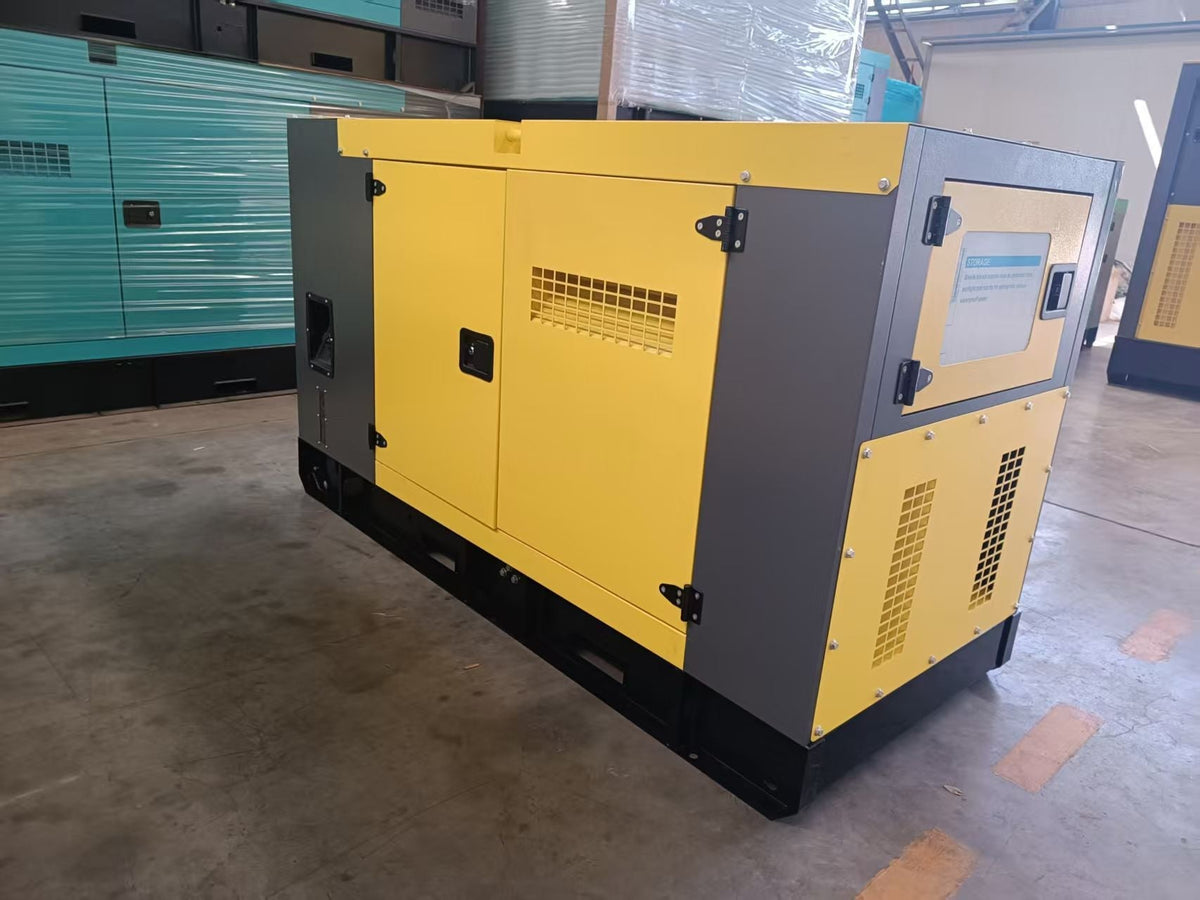

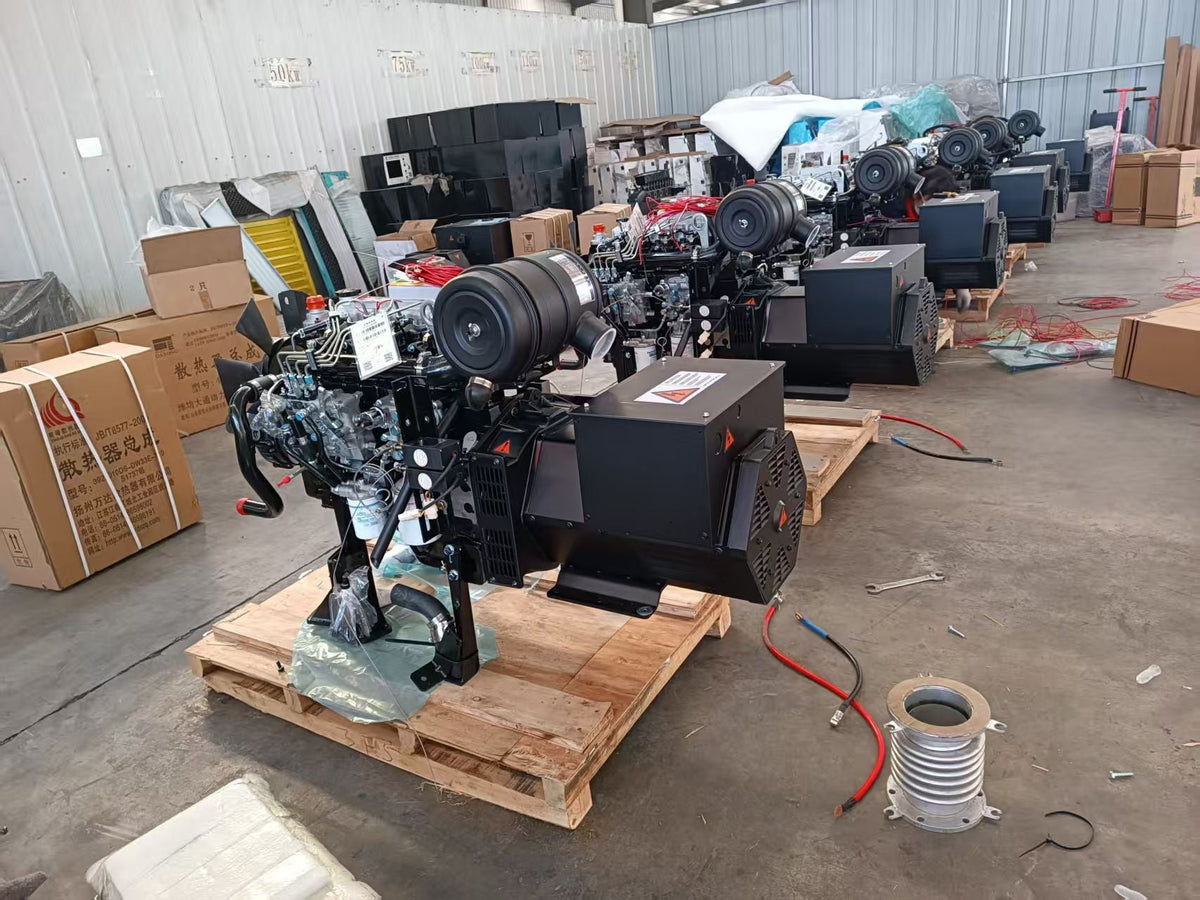

30kw Power Silent Type Diesel Generator 50Hz ATS Three Phase Generator Diesel
Dhs. 20,000.00 AED
SKU: YX30GF
Available to order
Applicable taxes calculated at checkout.
Delivery and taxes are calculated at checkout. Heavy loads and special unloading may require a separate quotation.
Product description
| Parameter | Specification |
|---|---|
| Product Model | Silent Diesel Generator with ATS |
| Phase Type | Three Phase |
| Maximum Power (kW) | 30 kW |
| Maximum Power (kVA) | 37.5 kVA |
| Fuel Type | Diesel |
| Engine Brand & Model | Yuchai YC4V55Z-D20 |
| Generator Brand | FLD-30 (All-Copper, Brushless Alternator) |

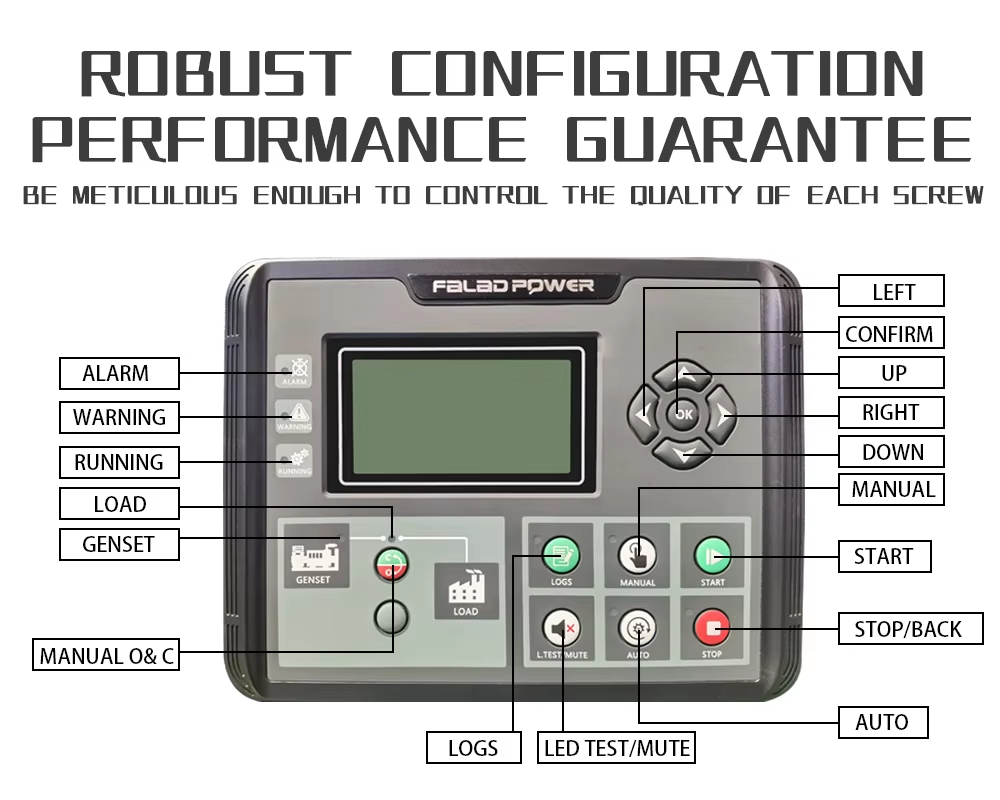

| Control System | Fully Automatic ATS Control System |
| Rated Voltage | 230V / 400V |
| Frequency | 50 Hz |
| Rated Current | 54 A |
| Protection Class | IP23 |
| Excitation Type | Brushless, Self-Exciting |
| Voltage Regulation System | AVR Automatic Voltage Regulation |
| Rated Speed | 1500 RPM |
| Wiring Configuration | 3 Phase, 4 Wires |
| Starting System | DC 24V Electronic Start |
| Cooling Method | Closed-Circuit Cooling System |
| Steady-State Frequency Regulation | ≤ ±1.5% |
| Steady-State Voltage Regulation | ≤ ±2.5% |
| Sudden Voltage Variation | ≤ +25% / −20% |
| Sudden Frequency Variation | ≤ +12% / −10% |
| Insulation Class | Class H |
| Number of Poles | 4 Poles |
| Starting Method | Electric Start |
| Engine Power Output | 42 kW |
| Speed Control System | Electronic Speed Control |
| Engine Type | Inline 4-Cylinder |
| Bore × Stroke | 89 × 100 mm |
| Engine Displacement | 2.5 Liters |
| Engine Speed | 1500 r/min |
| Fuel Consumption Rate | 240 g/kW·h |
| Fuel & Air Intake System | Turbocharged, Intercooled, Direct Injection |
| Configuration | Overall Size (L × W × H) | Weight |
|---|---|---|

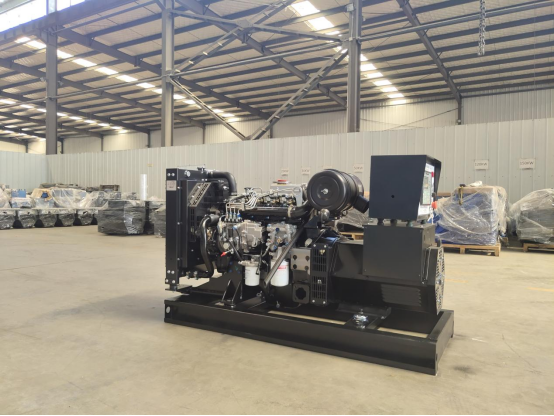

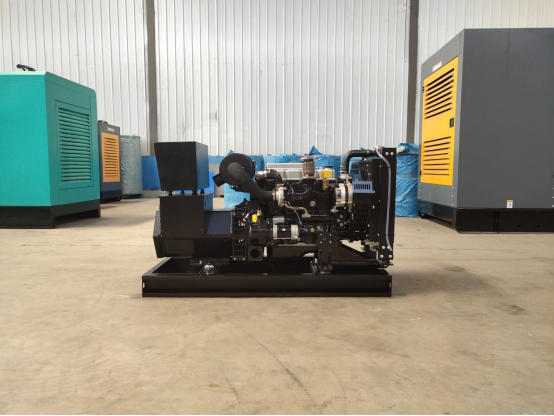

| Open Type Generator | 1.45 × 0.62 × 1.10 m | 600 kg |

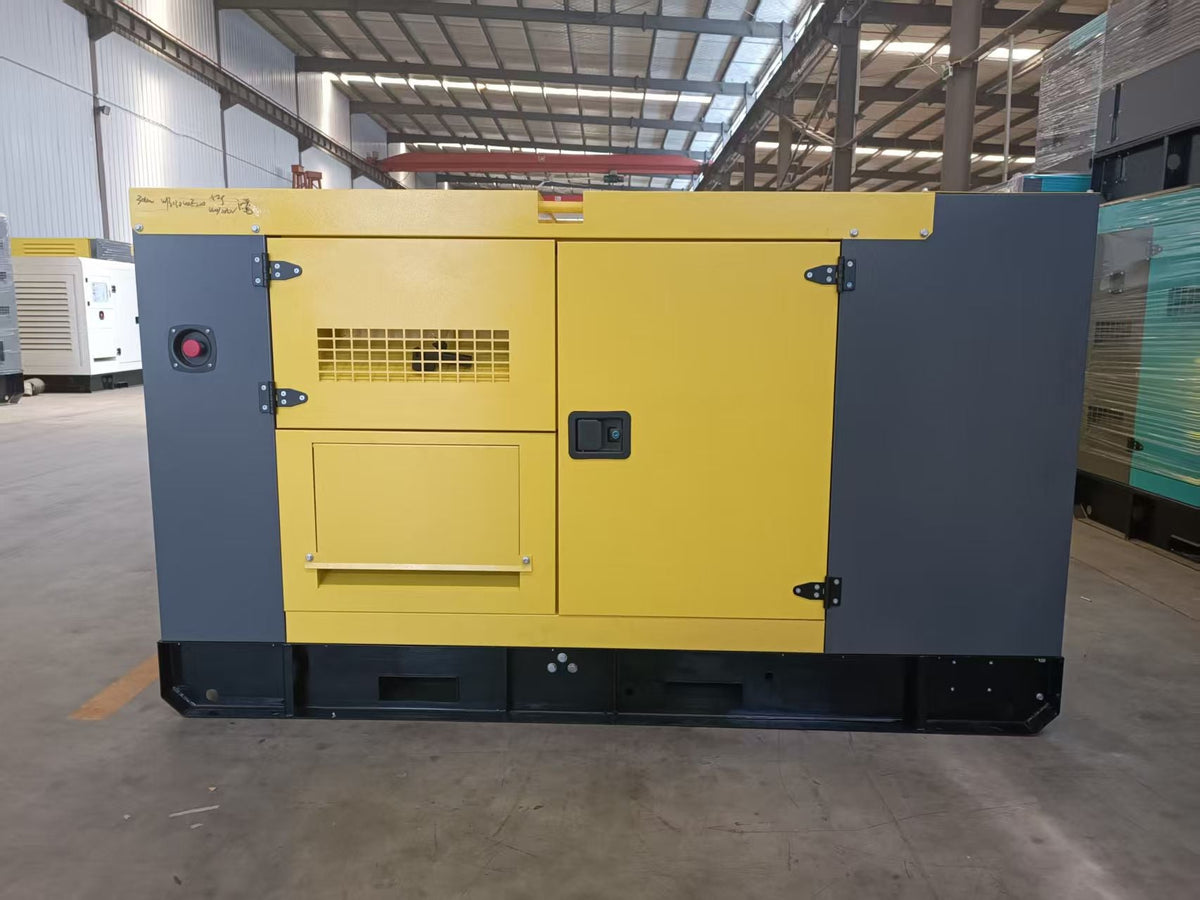

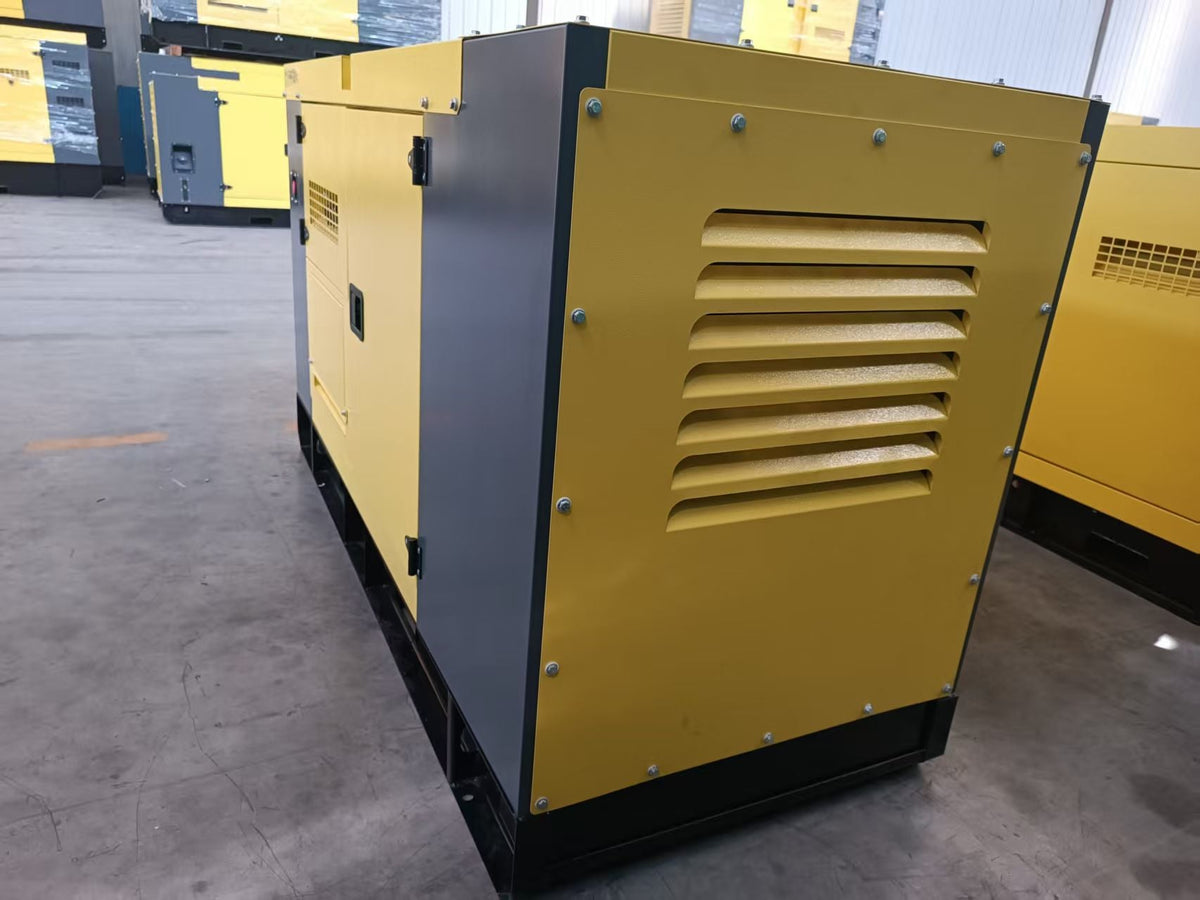

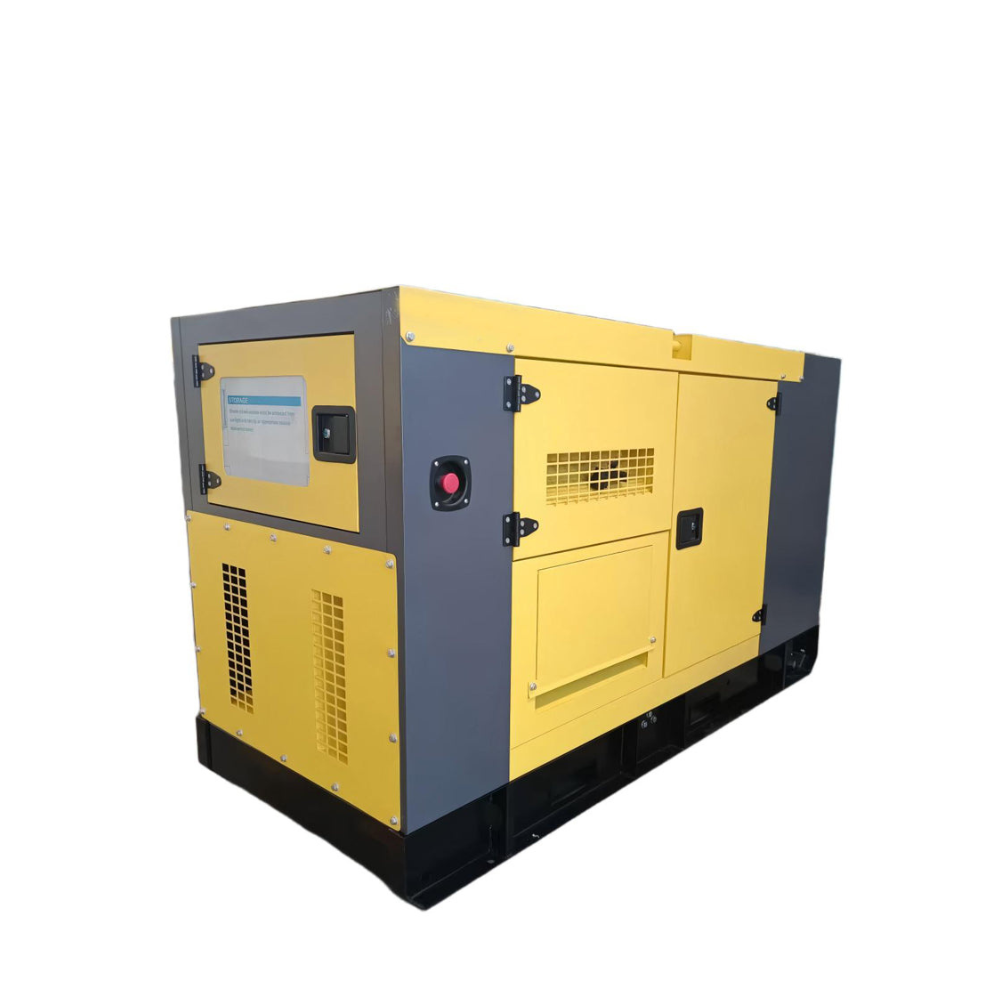

| Silent Canopy Type | 2.25 × 0.95 × 1.29 m | 950 kg |
